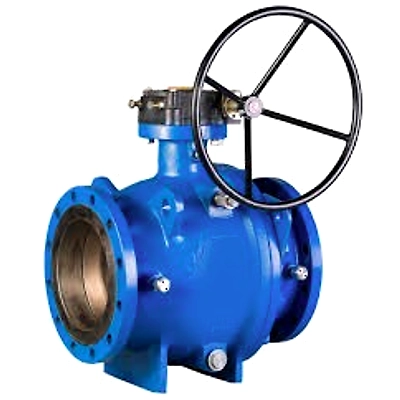

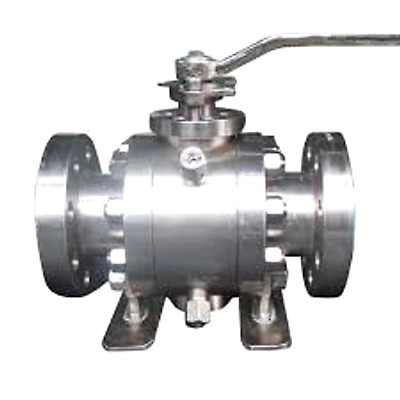

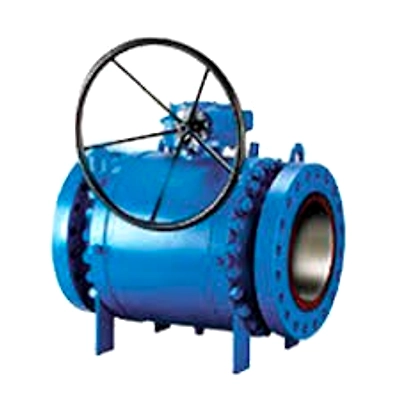

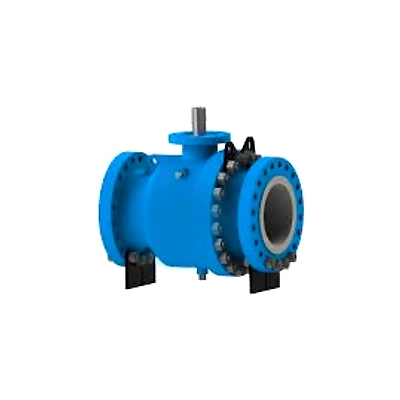

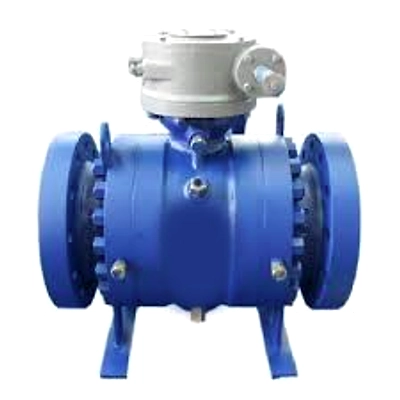

Trunnion Mounted Ball Valve
-
Product is not available
Country Of Origin : India
Explore the versatility of Trunnion Mounted Ball Valve, designed for optimal performance and durability. From size options to material selections, this valve offers top-tier quality for industrial applications.
Features
- Size Range from ¼” to 48”
- Multiple Material Options available
- Wide Pressure Rating from Class 150 to Class 2500
- Extensive Working Temperature Range of -196°C to 450°C
- Diverse End Connection Choices
Precision Engineering
Versatile Functionality
|
Size Range |
¼” to 48” (DN 6 to DN 1200) |
|
Material Options |
Stainless Steel (SS 304, SS 316, SS 316L), Carbon Steel (ASTM A216 WCB), Duplex Steel, Alloy Steel (ASTM A182 F22), Cast Iron (ASTM A126 Class B), Bronze, Brass (IS 319 Type 1, DZR Brass) |
|
Pressure Rating |
Class 150 to Class 2500, PN10 to PN420, Hydraulic Valves up to 700 bar (10,000 PSI). |
|
Working Temperature |
-196°C to 450°C (Cryogenic to high-temperature applications) |
|
Seat Material |
PTFE, RPTFE, CPTFE, NYLON PEEK, Metal-to-Metal |
|
End Connections |
Flanged (RF, FF), Screwed (BSP, NPT), Socket Weld (SW), Butt Weld (BW), Tri-Clamp. ASME B16.5 (Flanges), ASME B16.11 (SW), ASME B1.20.1 (Threaded). |
|
Manufacturing Standards |
API 6D, API 607 (Fire-Safe), ASME B16.34, ISO 5211, BS 5351, EN 13709, DIN 3357, DIN EN 1092-1 (Flanges), DIN 3230 (Testing). JIS B2002. |
|
Media Compatibility |
Water, Oil, Gas, Chemicals, Steam, Slurry, Hydraulic Fluids, Acidic and Alkaline Solutions. |
|
Actuation Options |
Manual (Lever/Gear), Pneumatic, Electric, Hydraulic. |
|
Design Standards |
Fire Safe (API 607, ISO 10497), Anti-Static, Blowout-Proof Stem Design. API 6D, BS EN ISO 17292, ASME B16.34. |
|
Dimensions |
ASME B16.10, BS 5351, DIN 3202. |
|
Face-to-Face |
ASME B16.10. |
|
Leakage Class |
ANSI Class VI (Soft Seat), Class IV (Metal Seat) |
|
Testing |
API 598, ISO 5208. |
