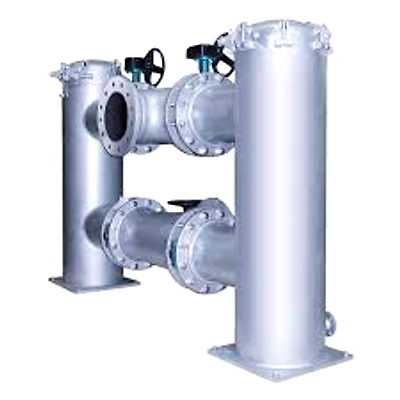

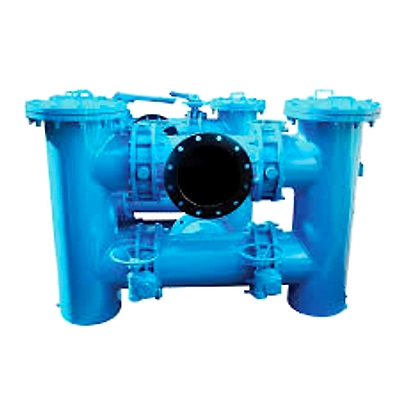

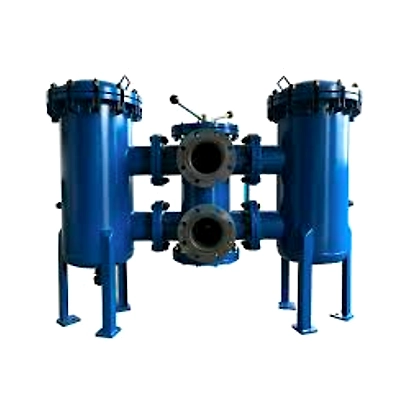

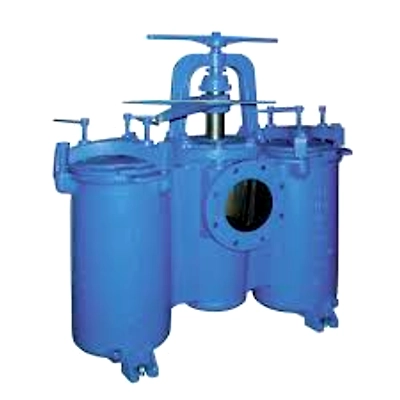

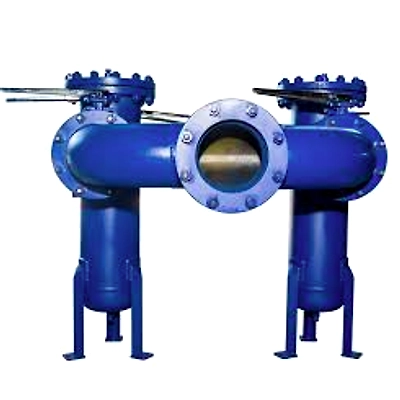

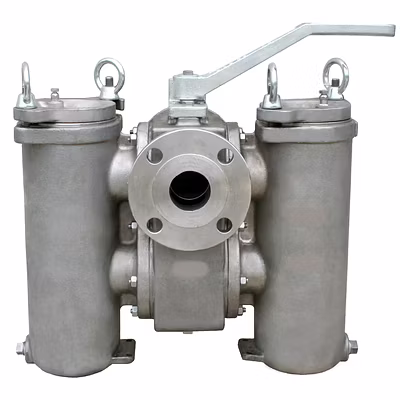

Duplex Strainer SS316L for Continuous Filtration

  • Product is not available

Country Of Origin : India

Parameter Specification

Size Range ½” (15mm) to 24” (600mm)

Body Material Cast Iron, Ductile Iron, WCB, LCB, CF8, CF8M, CF3M, Duplex Steel, Super Duplex, Alloy 20, Monel, Hastelloy

Screen Material SS304, SS316, SS316L, Duplex SS, Monel, Hastelloy

Working Temperature -29°C to 425°C depending on material

n


Pressure Ratings ANSI / ASME Class 150, 300, 600, 900, 1500 / PN10, PN16, PN25, PN40, PN100, PN250

End Connections Flanged (ASME B16.5), Screwed (BSP/NPT), Socket Weld (ASME B16.11), Butt Weld (ASME B16.9), ASME B1.20.1 (Threaded), EN 1092-1, DIN 2633

Design Standards ASME B31.1, ASME B31.3, EN 13445, DIN 3356, ISO 9001:2015

Testing Standards API 598, EN 12266-1, ISO 5208

Screen Perforations 0.5mm to 6mm or customized

Mesh Options 20 Mesh to 400 Mesh depending on process requirement

Manufacturing Certification ISO 9001:2015, CE Certification

Face-to-Face ASME B16.10, EN 558, DIN 3202

Inspection ISO 9001:2015, EN 10204 3.1 / 3.2 Material Certification, CE Certificatio
