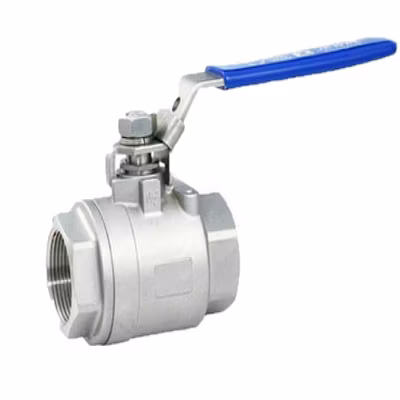

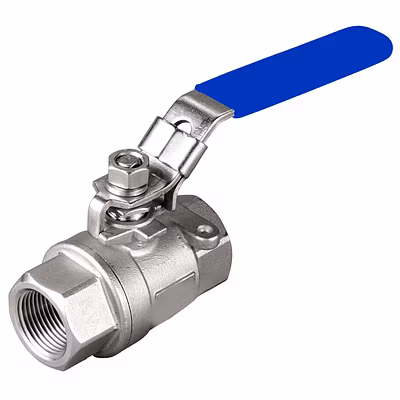

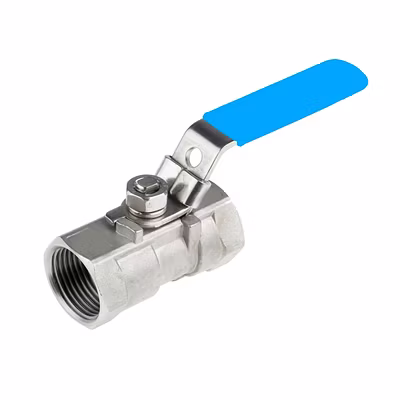

Ball valve
3.26
-
Product is not available
Brand:
Country Of Origin : India
Features of Ball Valve
- High capacity Ball Valve Trunion Ball Valve, Floating Ball Full and reduced Bore.
- The anti-static design ensures electrical continuity between the Body, ball & stem.
- Available in Single / Two / Three pieces.
- Wide selection of seat materials from PTFE, CPTFE, NYLON to PEEK.
- 90� locating and lock structure
- Blow-out Proof stem
- Available in Manual operated- Hand Lever/Gearbox/Pneumatic-Actuator, Electric, Hydraulic operated.
- Investment casting in various materials SS 304, SS 304L, SS 316, SS 316L, IC CF8,IC CF8M,IC CF3, ICCF3M
- Metal To Metal Seated
- For minimum pressure drop, straight through the flow path.
Specifications of Ball Valve
- Design-Asme/Iso/Din
- Size- Range From 6 Nb To 900 Nb (1/4" To 36")
- Mfg Std- Conforming To Bs 5351/Api 602/Ansi B 16.34
- Class- 150#-2500#
- Face To Face- As Per Asme B16.10 / Api 6d
- End Connections- Variety Of End Connection Flanged/Bw/Rtj.
- Pressure -Temp Rating - Astm B 16.34
- Screwed End Dimension-Astm B 1.20.1
- Bw End-Asme B16.25
- Testing-0 Api 598 / Api 6d / Bs 6755 / 12266
- Fire Safety-Fire Safe Design Api 607 / 6fa
- Moc- Cs/Ss /Alloy Steel/Dss /Ni-Alloys / Bronze
